Multiple Floor Plans in Studio

Meredith Lu Updated by Meredith Lu

Multiple floor plans can be created in XactRemodel and XactRestore Studio and even copied from an existing floor plan within the same project.

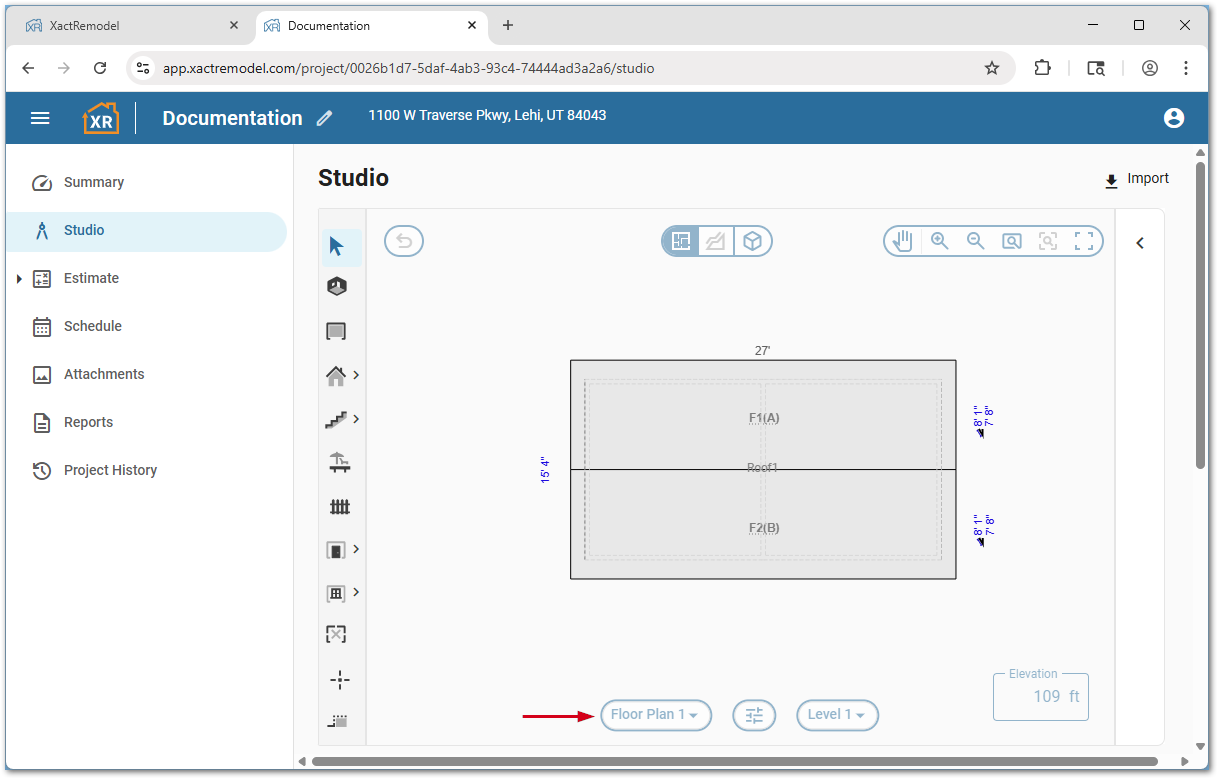

The current floor plan can be identified by reviewing the floor plan name listed in the Select and modify floorplans menu.

XRStudioHome

Add new floor plans

Rename floor plans

Delete floor plans


Add new floor plans

Follow the steps below to add new floor plans in Studio.

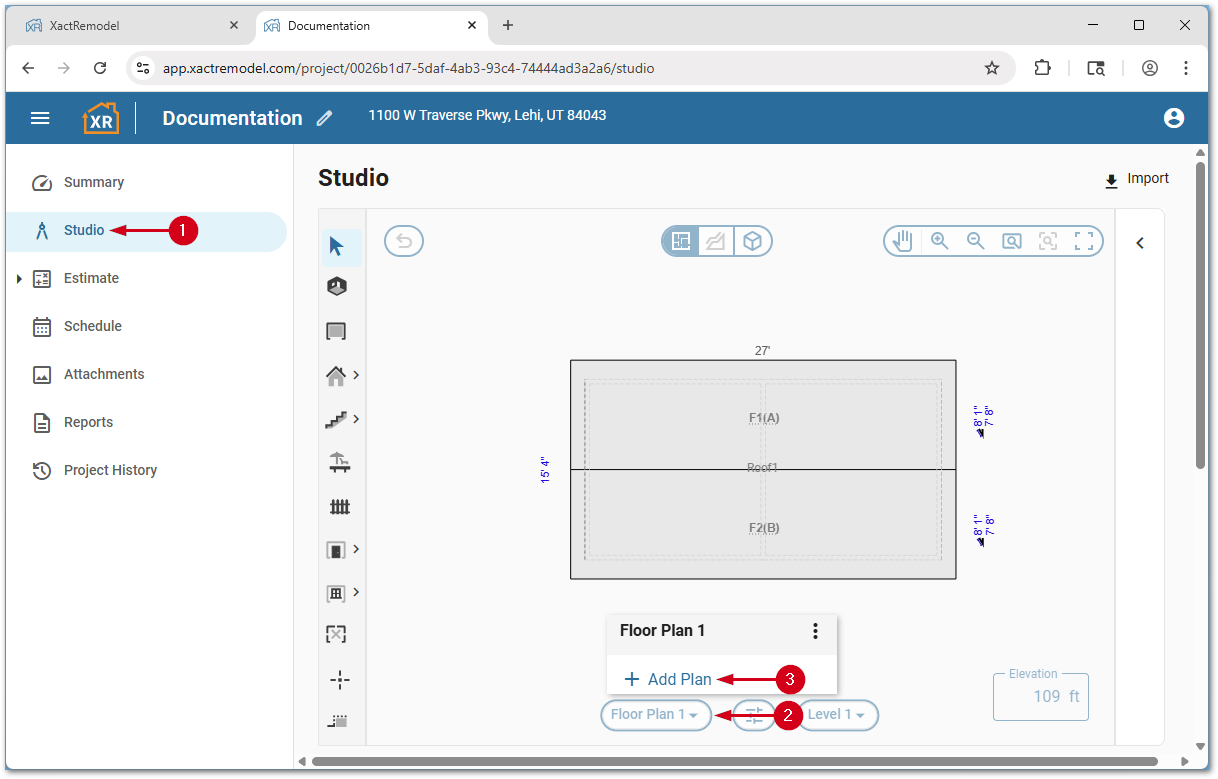

  1. Within a project, select Studio.
  2. Open the Select and modify floorplans menu.
  3. Select Add Plan.
    XRAddFP1

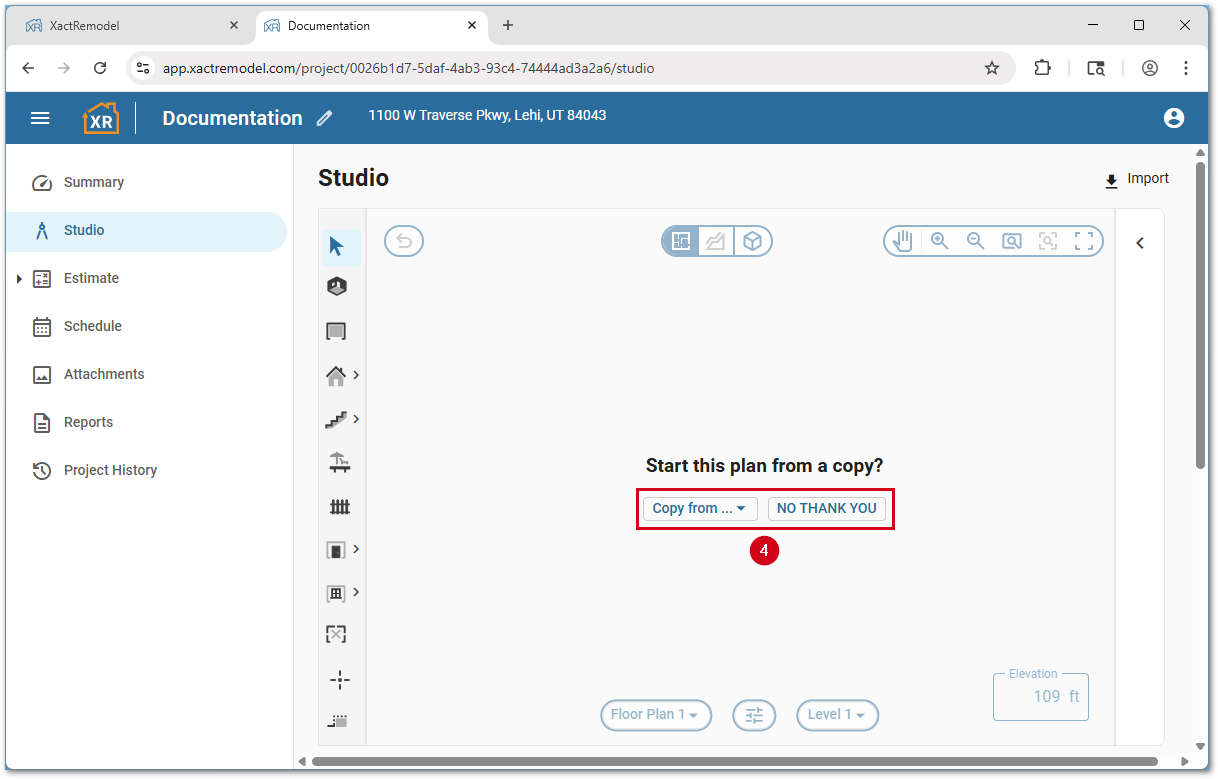

  4. An option to copy the floor plan from an existing one is presented or select NO THANK YOU to start with a blank floor plan.
    XRAddFP2

Back to top of document


Rename floor plans

Follow the steps below to rename floor plans in Studio.


  1. Within a project, select Studio.
  2. Open the Select and modify floorplans menu.

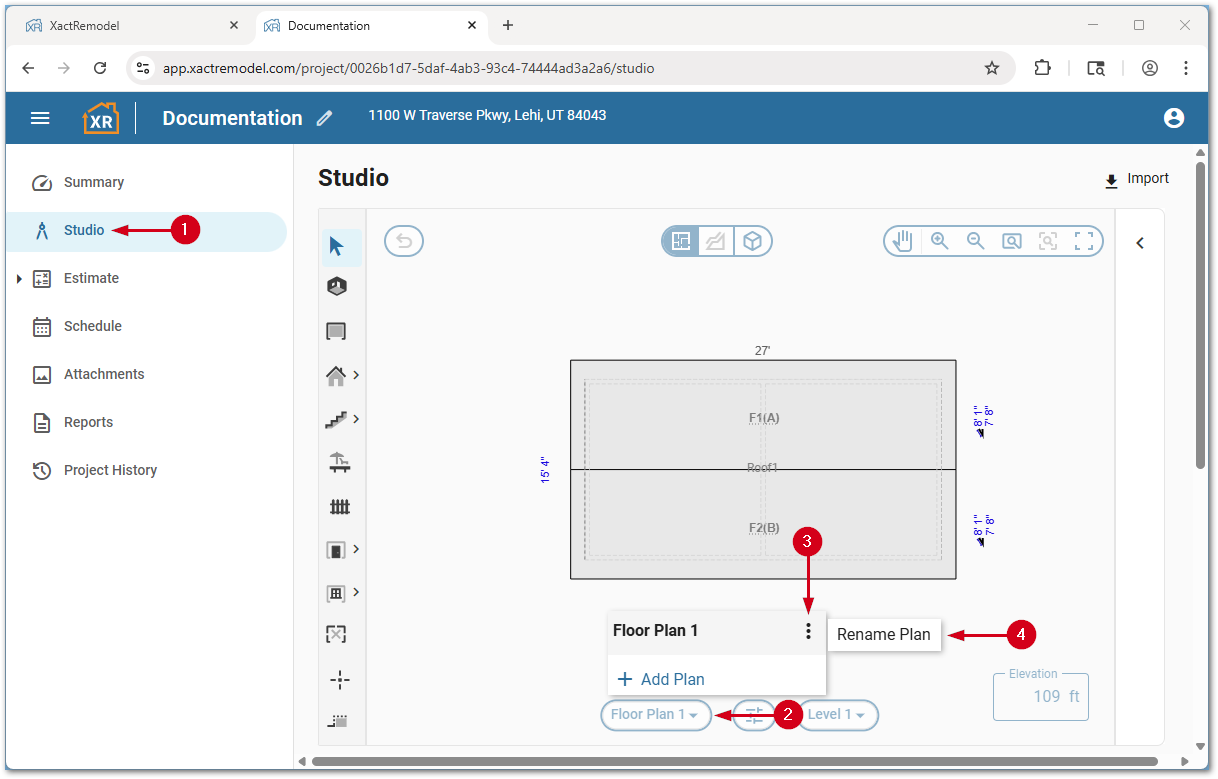

  3. Select the three-dot menu icon next to the floor plan to rename.
  4. Select Rename Plan.
    XRRenameFP1
  5. Enter the new name.
  6. Select a white space within the project to save the changes.
    XRRenameFP2

Back to top of document


Delete floor plans

Follow the steps below to delete floor plans in Studio.

Note: If there is only one floor plan, the option to delete will not be displayed.
  1. Within a project, select Studio.
  2. Open the Select and modify floorplans menu.
  3. Select the three-dot menu icon next to the floor plan to rename.
  4. Select Delete Plan. The plan will be deleted without a confirmation prompt.
    IMPORTANT: Deleted floor plans cannot be recovered.
    XRDeleteFP

Back to top of document
