Roof locks

Russell B. Updated by Russell B.

Measurement locks within the roof properties window allow you to see which parts of the roof measurements are locked and cannot be modified.

Note: For more information about the properties window, see our Roof properties document.

For example, you can use the run measurement lock if you are extending the rafter length on a roof but want to keep the ridge line in place.

Note: The steps below cover this scenario; however, there are multiple other locks available.
  1. Within a project, select the desired roof.
  2. Select the Properties… icon.

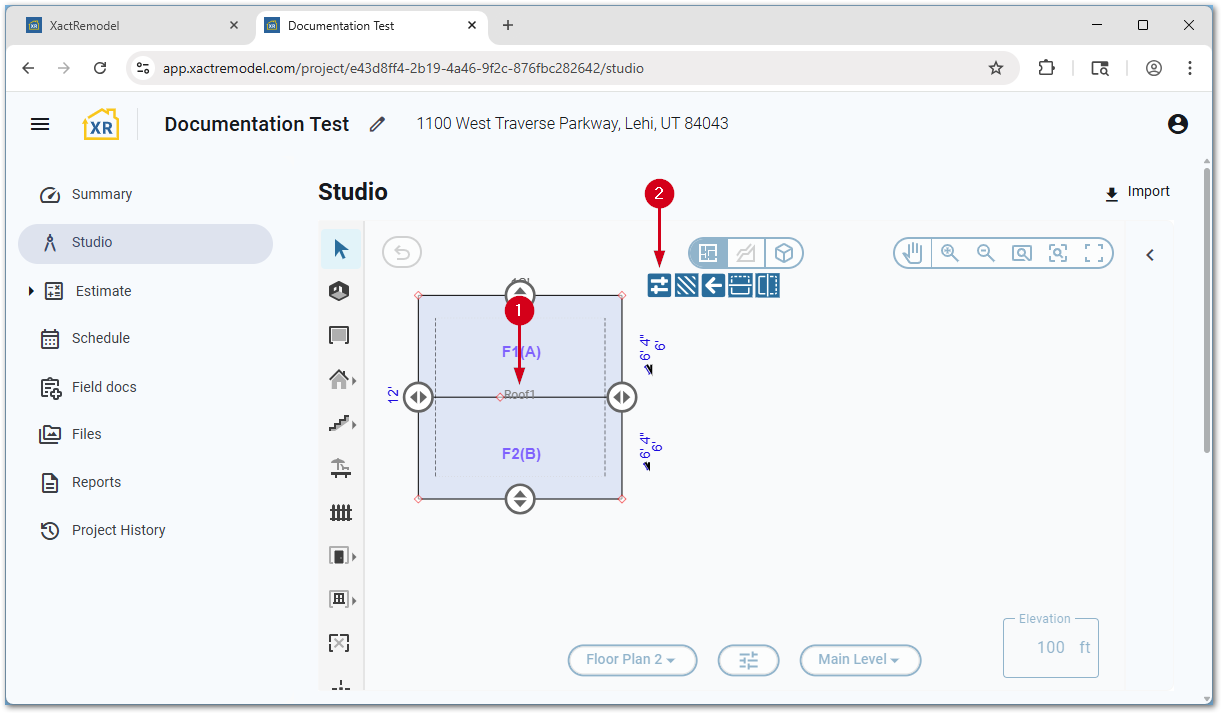

    XRSelectRoof
  3. Select the lock icon next to the desired Run.
    Note: When locked, the icon changes from an unlocked padlock to a locked one and displays blue instead of grey.
  4. Select the X icon to save.

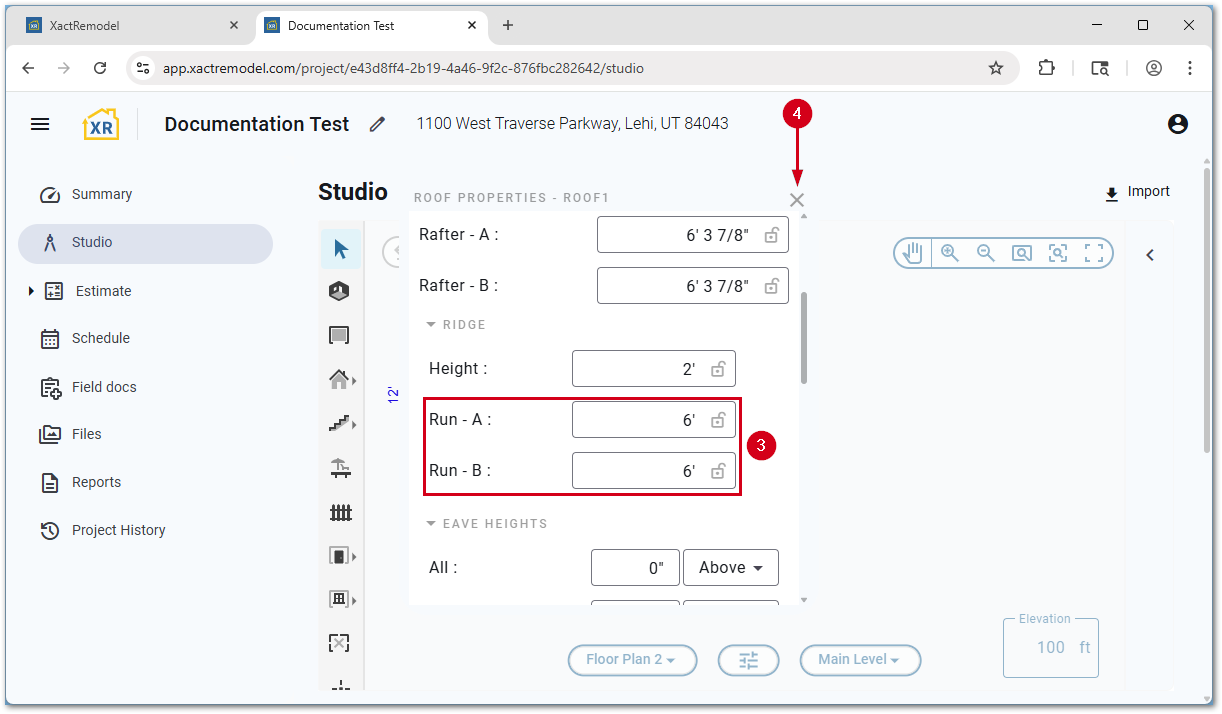

    XRLockRoofRun-A

Now, you can either resize the roof by dragging the desired face or return to the properties window and enter measurements manually.

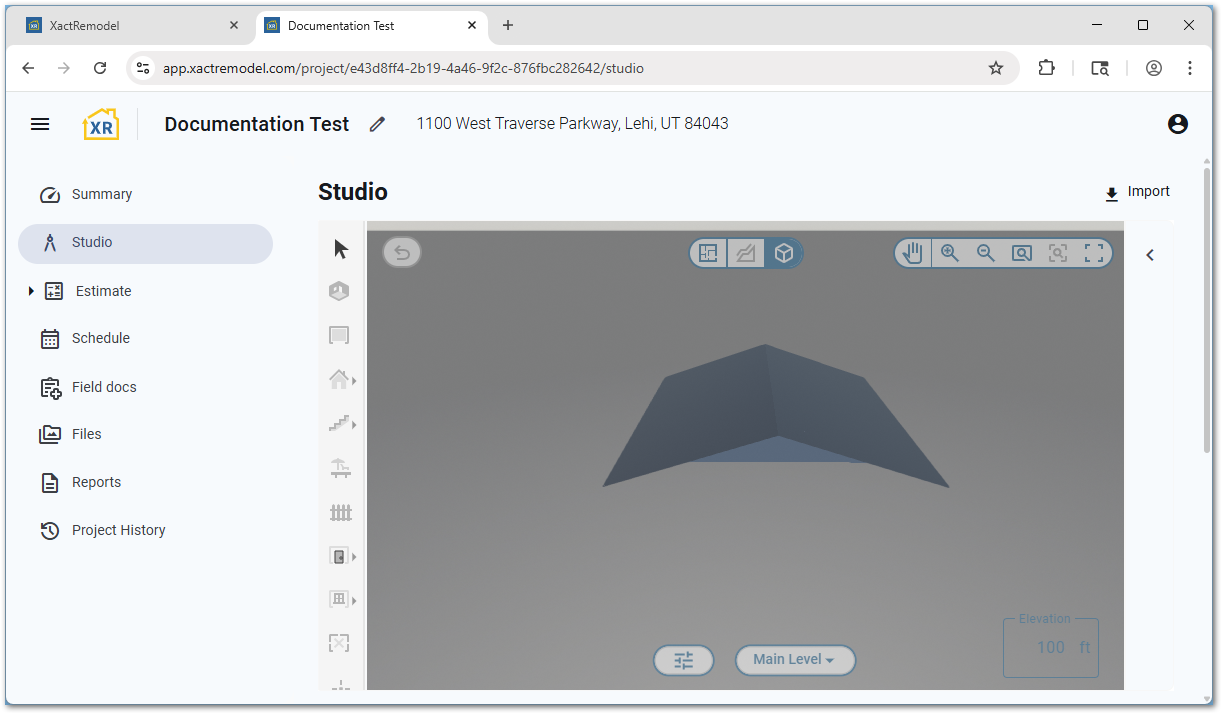

The roof after locking the Run - A measurement.

XRRoofBefore

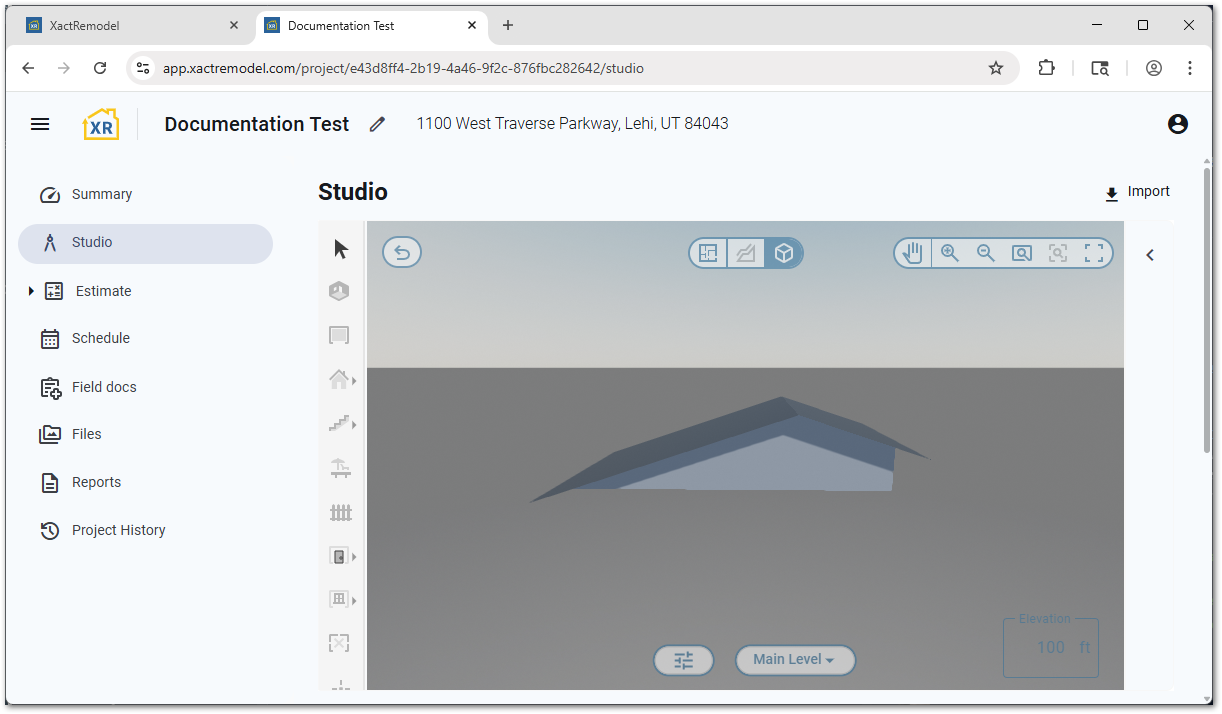

The same roof, after extending one of the faces with the locked Run - A measurement. Note that the ridge remains in the same location.

XRRoofAfter
