Ceilings

Rose Gulley Updated by Rose Gulley

Ceiling properties can be edited for rooms sketched in the Studio feature. The following types are available:


  • Attic: Creates a barrel style ceiling. For assistance with these roofs, see our Create a vaulted or attic ceiling document.
  • Box: A flat ceiling, the most basic form. One measurement is available which sets the height of the entire ceiling.
    Note: Rooms that are added and dimensioned using the Estimate tree are only able to have box ceilings.
  • Peaked: For rooms with a taller spot on the ceiling. Several variables are available to determine the slope and location of the peak.
  • Sloped: Like a peaked ceiling just without a peak in the ceiling. Two variables are available to determine the height of the short and tall wall.
  • Tray: Rooms that have a taller center ceiling area. Several variables are available to determine the height and where the tray sits.

Ceiling properties can be accessed by opening the room properties window.

Note: Studio is not available on XactRemodel or XactRestore mobile.

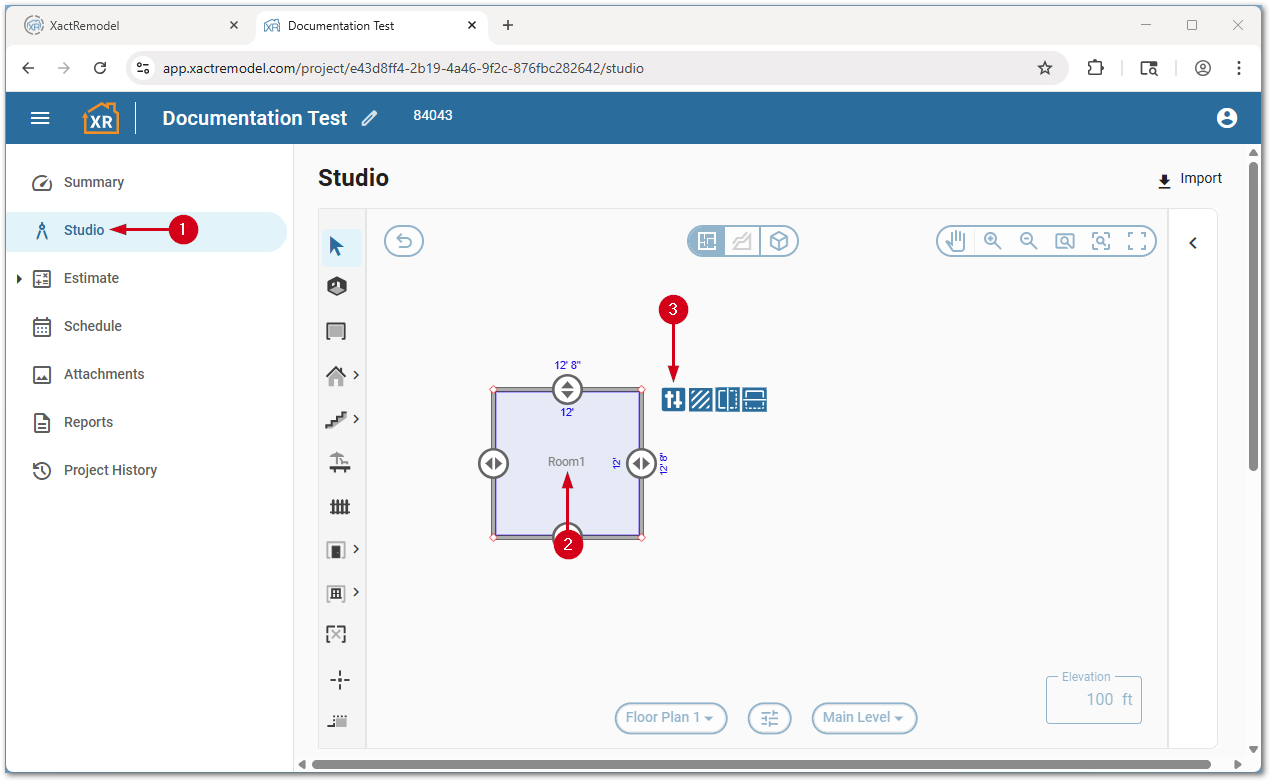

  1. From within a project in XactRemodel online, select Studio.
  2. Select the desired room.
  3. Select the Properties… icon. The Room Properties window will open.
    XRStudioSelectRoom

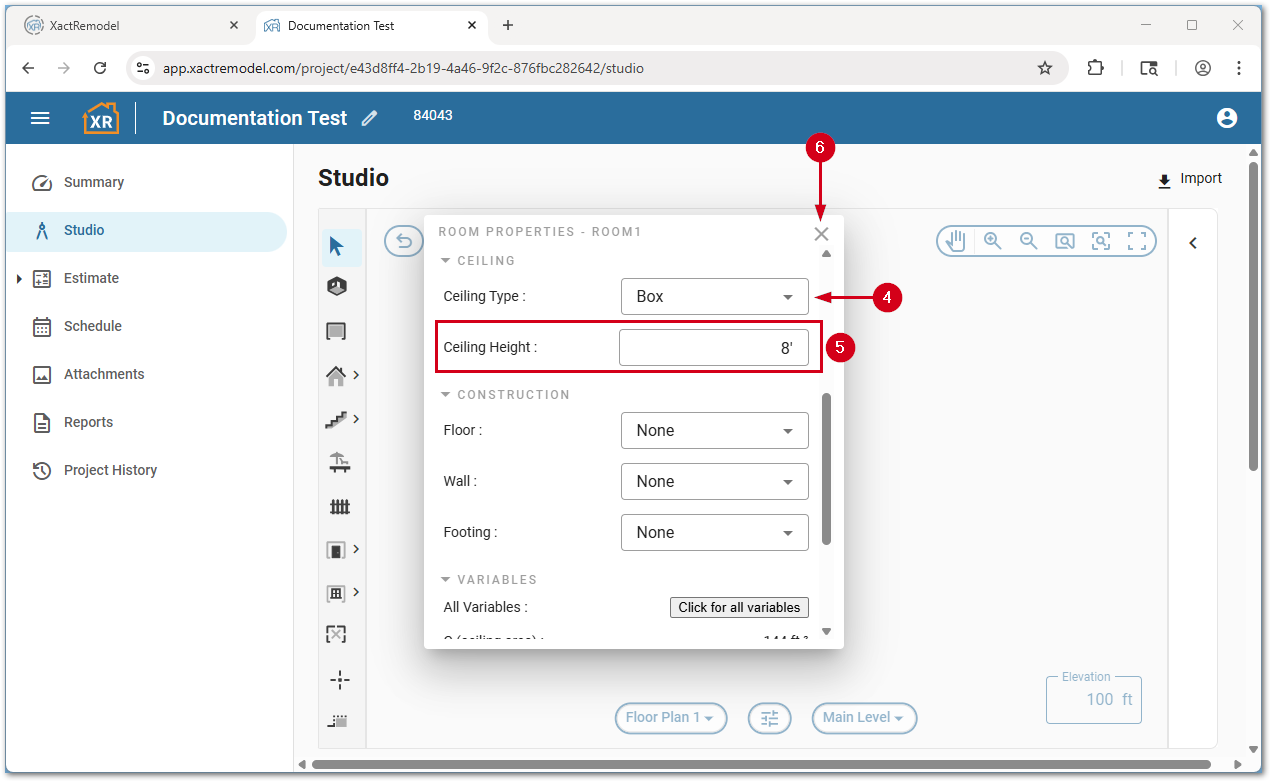

  4. Select the desired ceiling type from the Ceiling Type menu.
  5. Set any additional variables.
  6. Select the X icon to save changes. The Room Properties window will close.
    XRStudioRoomProperties
