Vertex tool

Russell B. Updated by Russell B.

The vertex tool allows you to create hinge points or angled walls. The below example shows creating an angled side wall.

Note: By default, rooms have automatic vertices at the point where two wall segments meet.

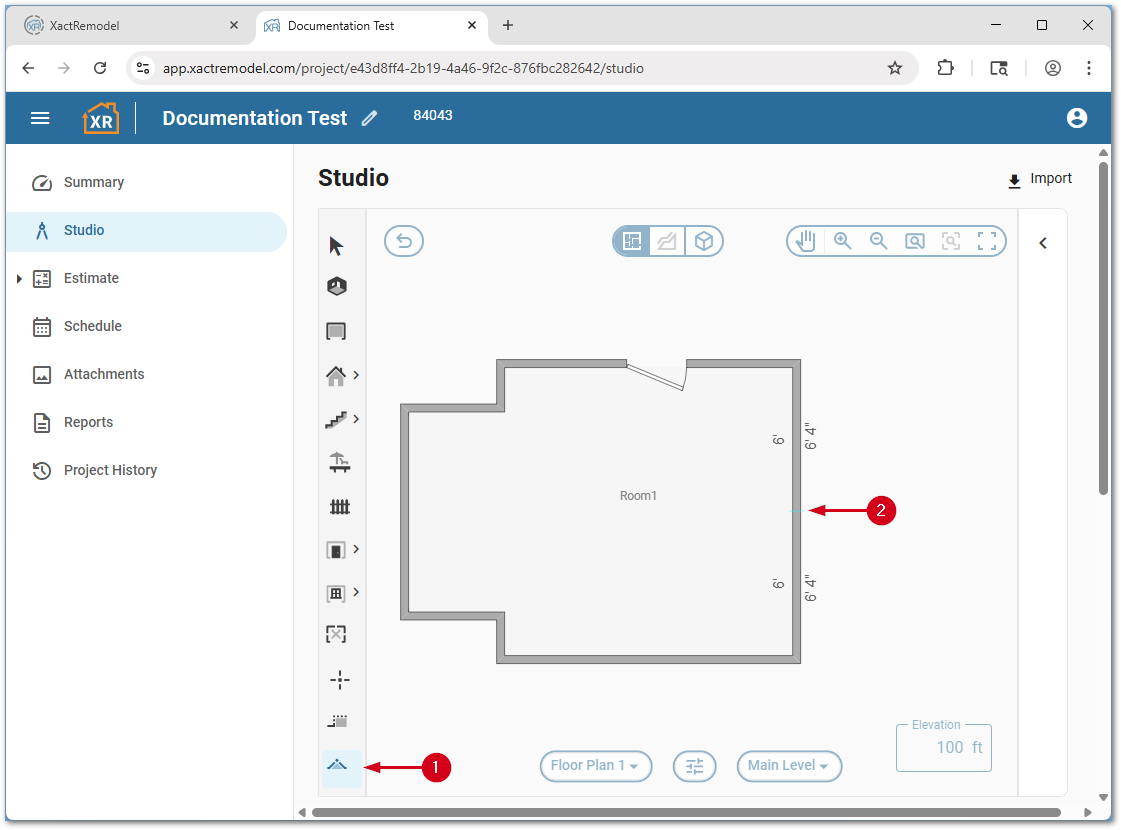

  1. Within Studio, select the Add Vertex button.
    Note: Alternatively, press the V key on the keyboard.
  2. Select the desired hinge point along a wall.
    XRAddVertex

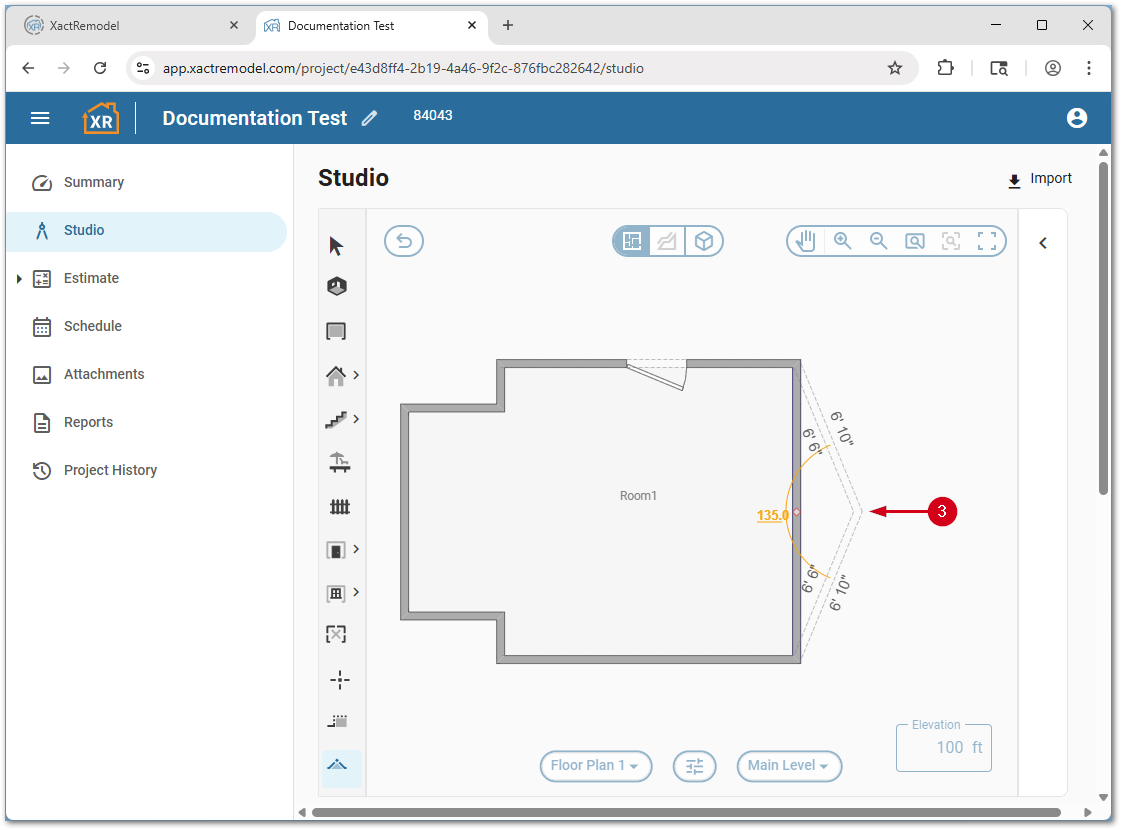

  3. Select and drag the red diamond to create the angle.
    Note: Hold the Shift key while dragging the red diamond to create a non-preset angle.
    XRDragVertex
