Square Break Tool

Rose Gulley Updated by Rose Gulley

The Square Break tool is used to create offset walls or create small sub rooms, such as closets and pantries in Studio.


Single-break method

Double-break method


Single-break method

The single-break method can be used to extend or shorten a wall at the point where the cursor is placed.


  1. Within Studio in XactRemodel or XactRestore, select the Square Break icon.
    Note: Alternatively, select the B key on the keyboard.

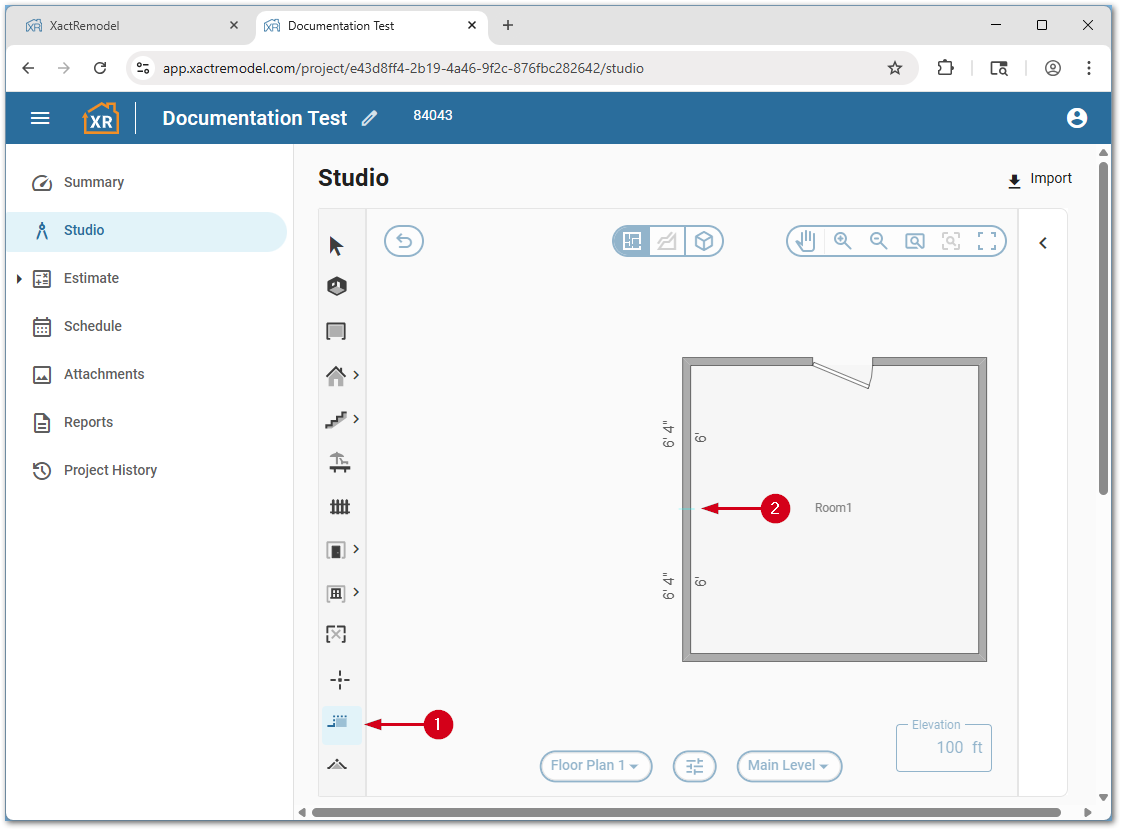

  2. Select the spot along the wall to create the break.
    XRSquareBreak1
  3. Select and drag the desired double-arrow icon.

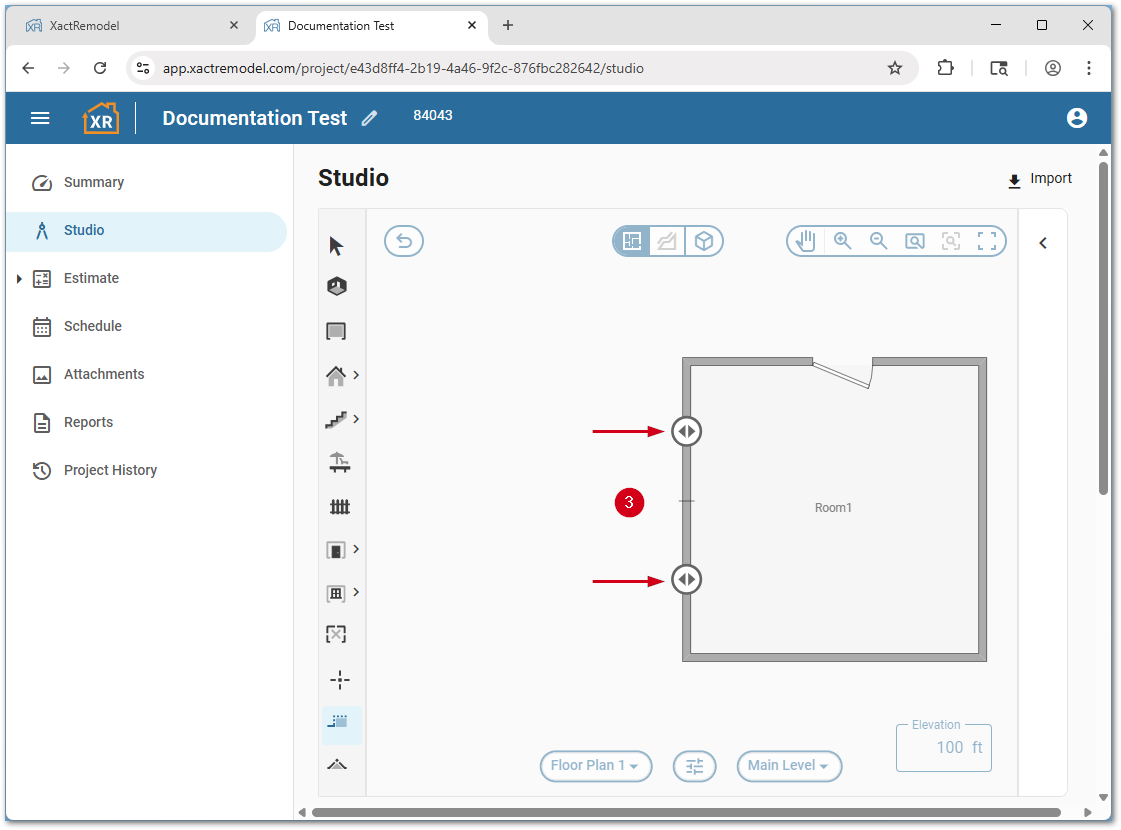

    XRSquareBreak1Arrow

To create an offset, select a blank space in the Studio window. To create a new sub room, select the plus icon that appears.

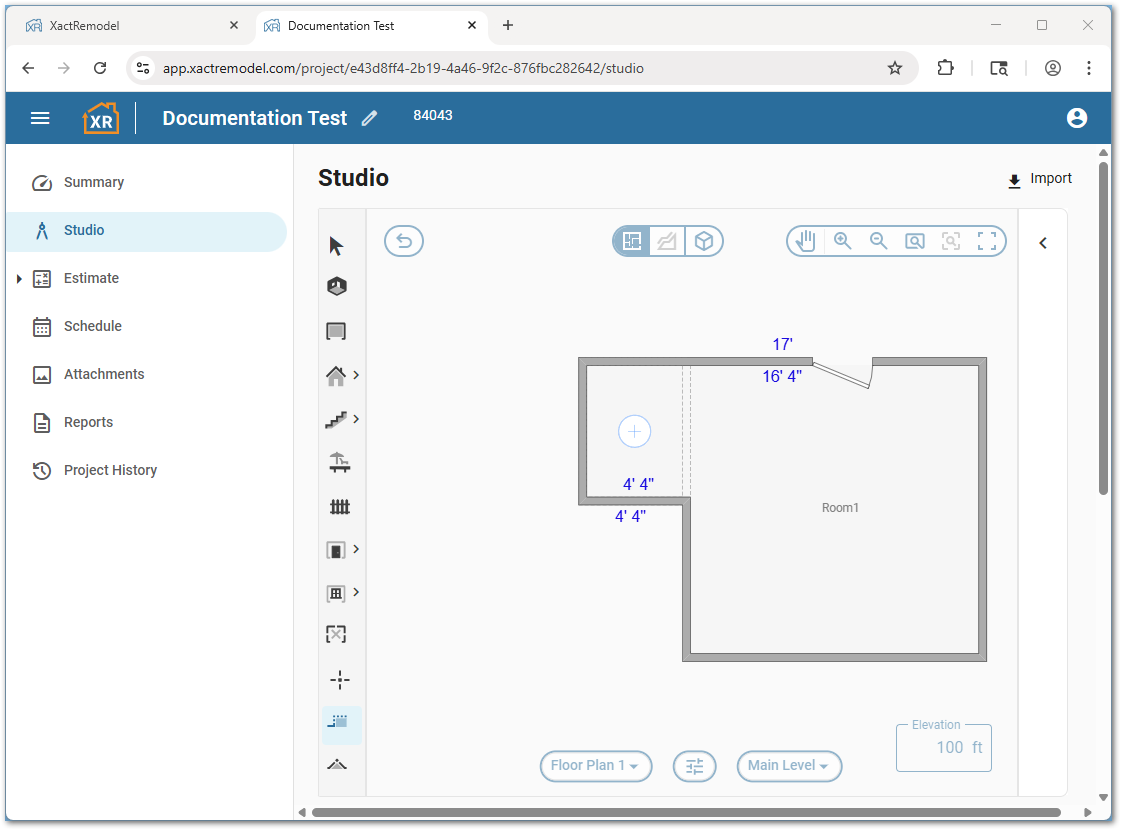

XRSquareBreak1Result

Back to top of document


Double-break method

The double-break method can be used to extend or shorten a wall for a specific width.


  1. Within Studio in XactRemodel or XactRestore, select the Square Break icon.
    Note: Alternatively, select the B key on the keyboard.
  2. Select and drag the width desired.

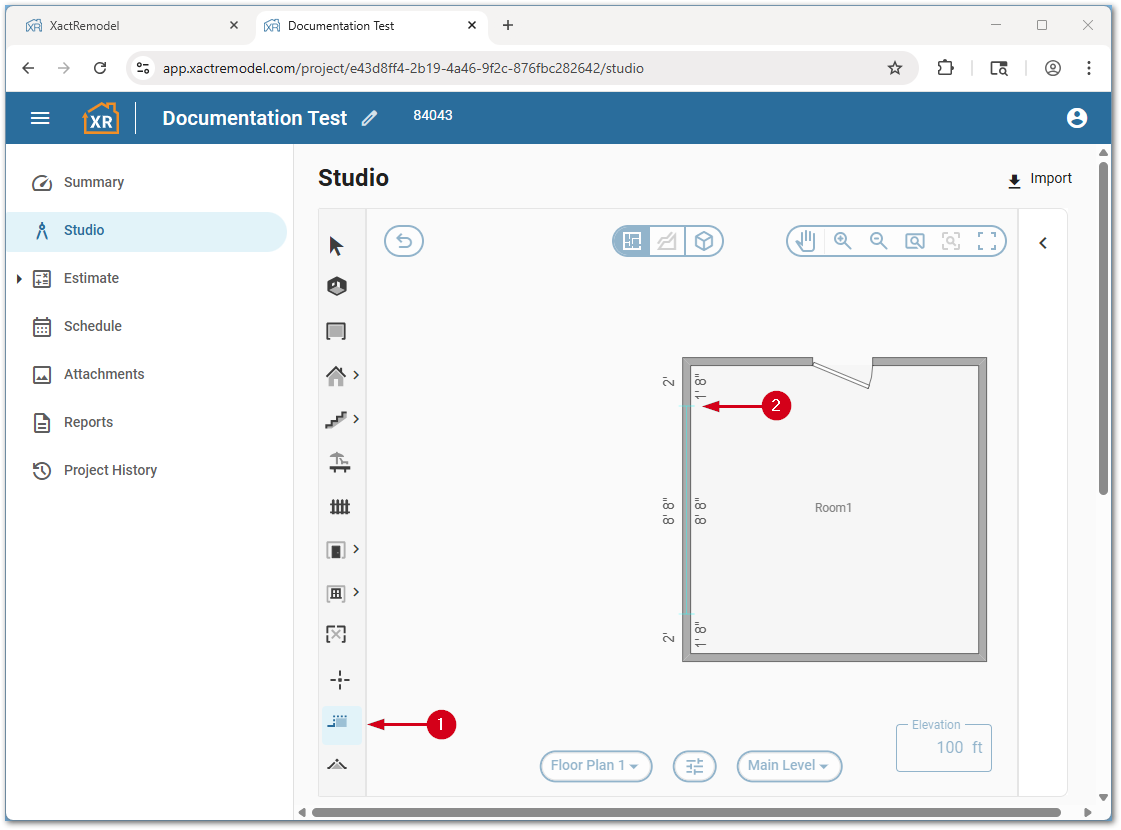

    XRSquareBreak2
  3. Select and drag the desired double-arrow icon.

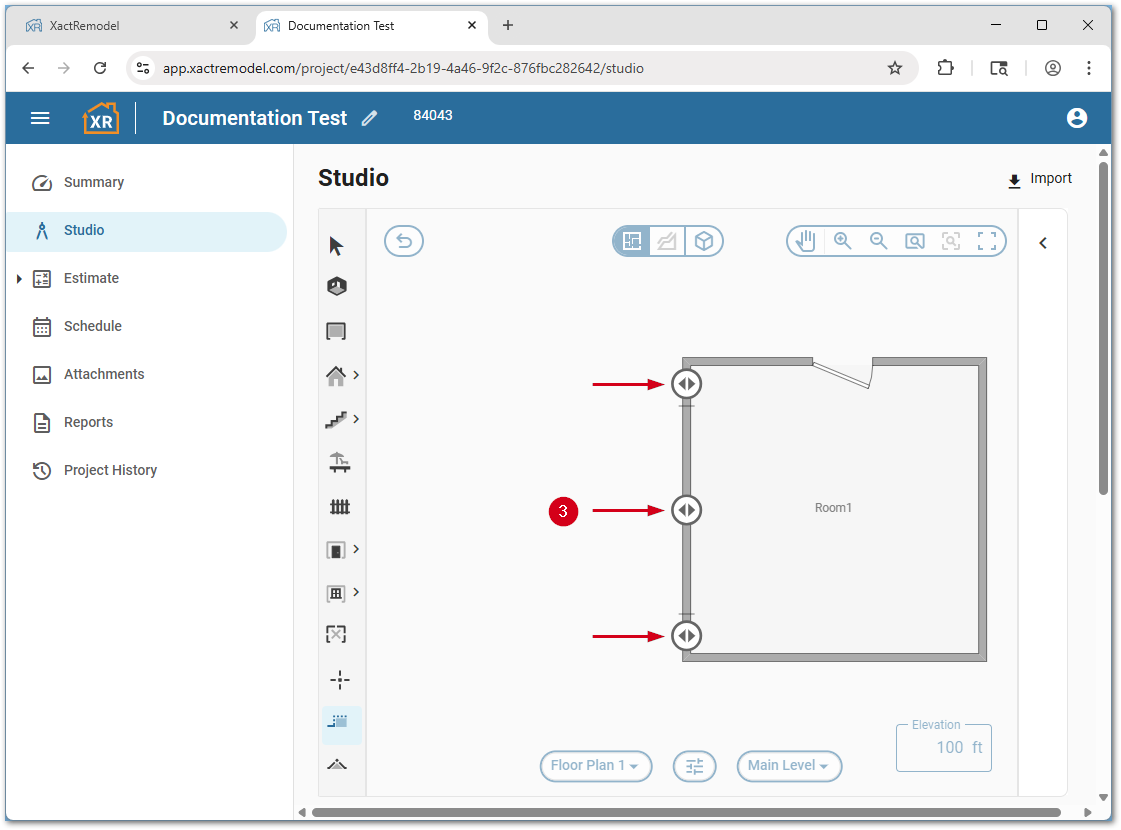

    XRSquareBreak2Arrow

To create an offset, select a blank space in the Studio window. To create a new sub room, select the plus icon that appears.

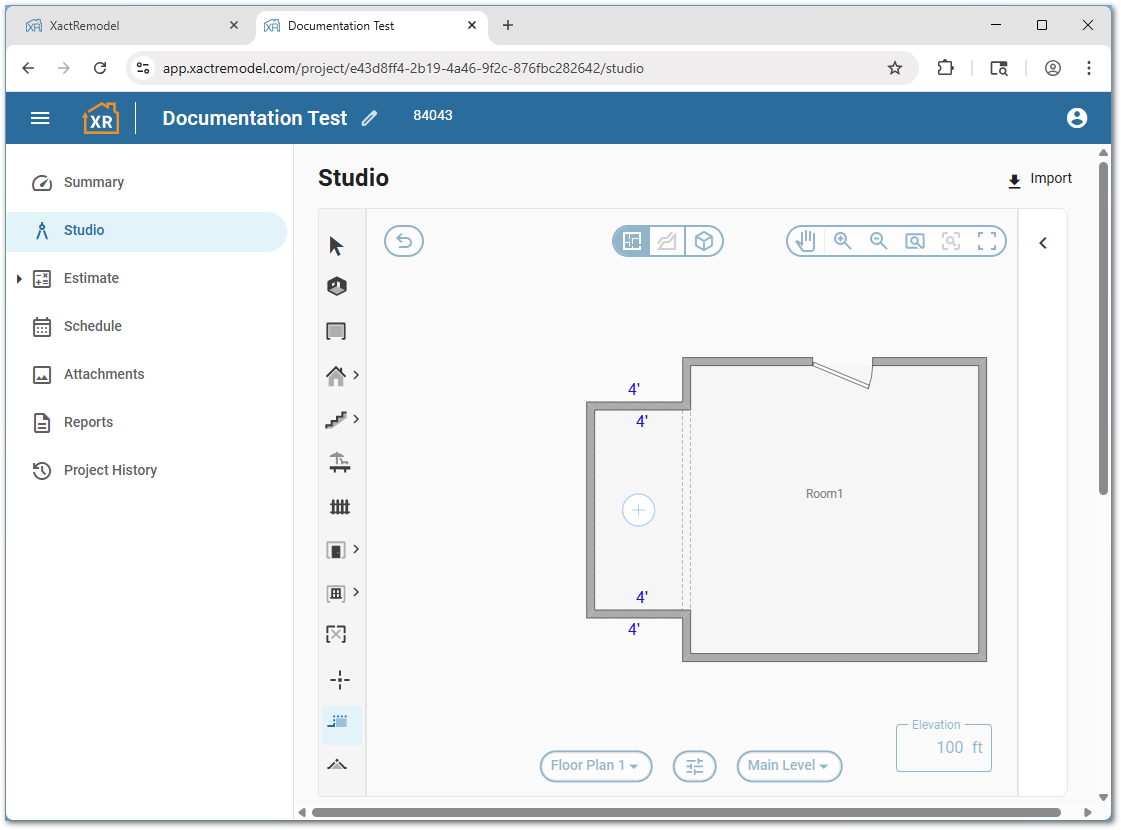

XRSquareBreak2Result
