Create a vaulted or attic ceiling

Rose Gulley Updated by Rose Gulley

  1. From within a project, click Studio.
    Note: If the project menu is hidden, click the project menu icon.

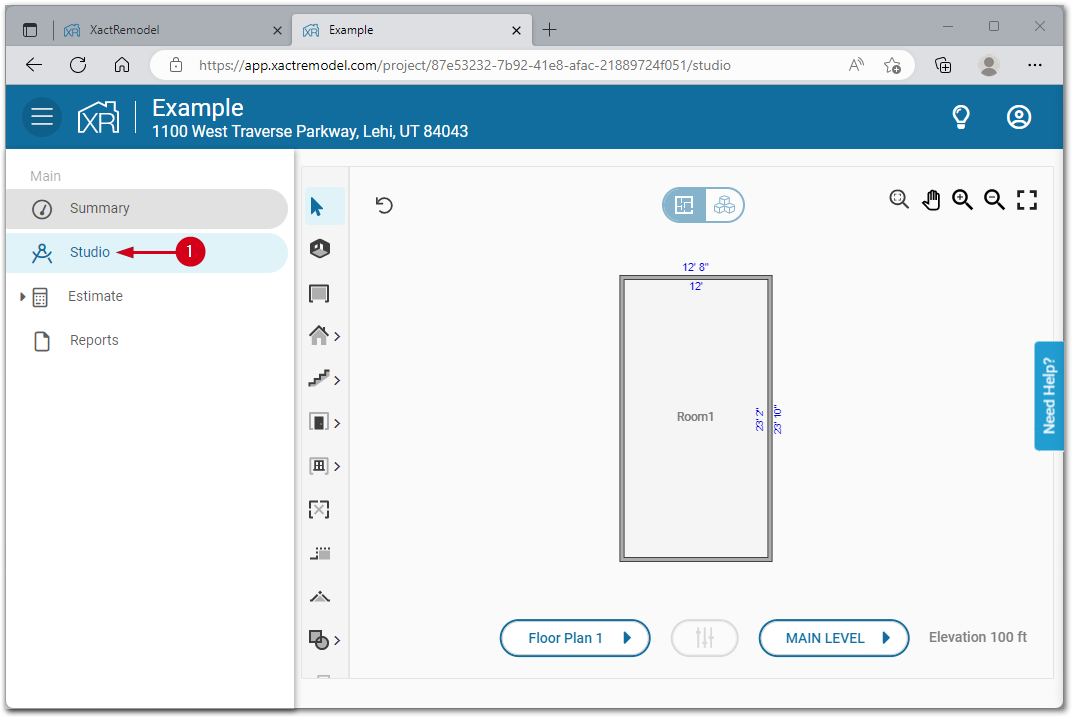

    XRStudio
  2. Create or click on the desired room.
  3. Click the properties icon.
    XRRoomPropertiesIcon
  4. Open the Ceiling Type menu.
  5. Select Attic.
  6. Make any measurement adjustments needed.
  7. Click the close icon to save.
    XRAtticCeilingProperties

The ceiling can now be seen in 3D view.

Note: If the room requires an attic ceiling with different slopes or angles, this can be accomplished by sketching three rooms together and deleting their adjoining walls. A combination of flat ceilings and sloped ceilings can be used to create the attic ceiling shape. The ceiling slopes can then be set using each room's wall heights.
XRAtticCeiling3D
